ACCESSORIES FOR HYDRAULIC
SYSTEMS AND TANKS
Tank filler and breather filter are used to filter incoming air of hydraulic tanks and for filling hydraulic tanks with oil. Available versions: pressurized, non-pressurized, threaded connection, welded and flange mounting with screws.
SAP054 - SAP075 - SAAir breather filter
With threaded connection, flow rate up to 2500 l/min
They are usually directly fitted on the tank. Common applications: mobile machines and industrial equipment
SAW115Dessicant air breather filter
Moisture control desiccant breathers
SAW115 breather units can be added to systems or can replace existing breathers using the SMG 1 adapter. Common applications: IBC tanks, Transformers, Storage Tanks in Hydraulics, Power Generation, Mining, Aviation, Storage, Manufacturing, and Petrochemical applications.
SCSAir breather filter
Air breather filters composed of spin-on type filter elements, with solder or flange connections, flow rate up to 1300 l/min
They are usually directly fitted on the tank. Common applications: mobile machines and industrial equipment
SME1 - SMF1 - SML1Tank accessories
Risers for breathers and filler caps installation
They are usually directly fitted in any place on the side of the tank. Common applications: mobile machines and industrial equipment
TA46 - TAP50 - SAP50Filling caps and air breathers
Filling caps and air breathers with 3 and 10 µm filter element. Flow rate up to 200 l/min. Makes it possible to mount a pressurization valve on TAP50 and SAP50 versions
They are usually directly fitted on the tank. Common applications: compact hydraulic systems
TA80Metal oil filler and air breather filler cap
Filling caps and air breathers with 3 and 10 µm filter element. Flow rate up to 550 l/min. Available features: pressurization valve and padlock tab
They are usually directly fitted on the tank. Common applications: mobile machines and industrial equipment
TAP90Nylon oil filler and air breather filler cap
Filling caps and air breathers with 3 and 10 µm filter element. Flow rate up to 550 l/min. Available features: pressurization valve, padlock tab and dipstick
They are usually directly fitted on the tank. Common applications: mobile machines and industrial equipment

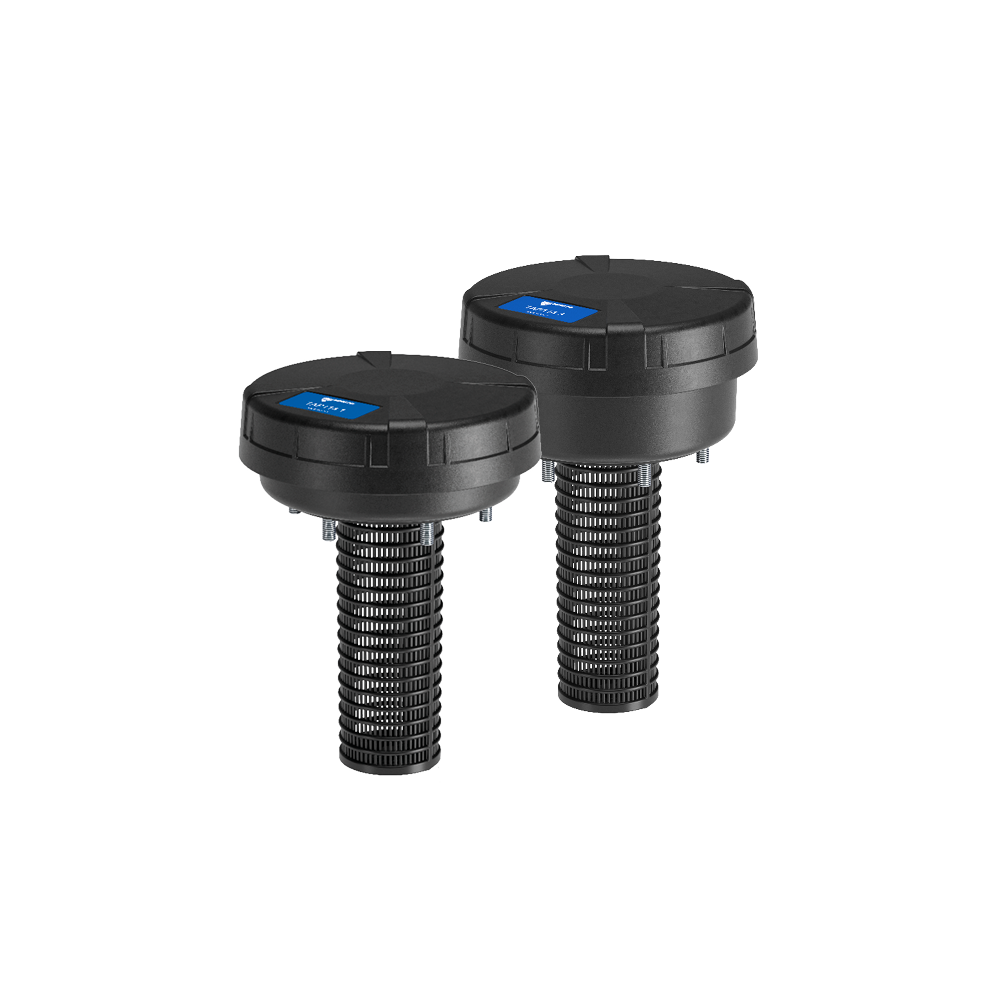

TAP114Nylon oil filler and air breather filler cap
Filling caps and air breathers with 10 µm filter element. Flow rate up to 1600 l/min. Replaceable filter element
They are usually directly fitted on the tank. Common applications: mobile machines
TAP115 & SAP115Nylon oil filler and air breather filler cap
Filling caps and air breathers with 3 and 10 µm filter element. Flow rate up to 3000 l/min. Replaceable filter element, visual clogging indicator
