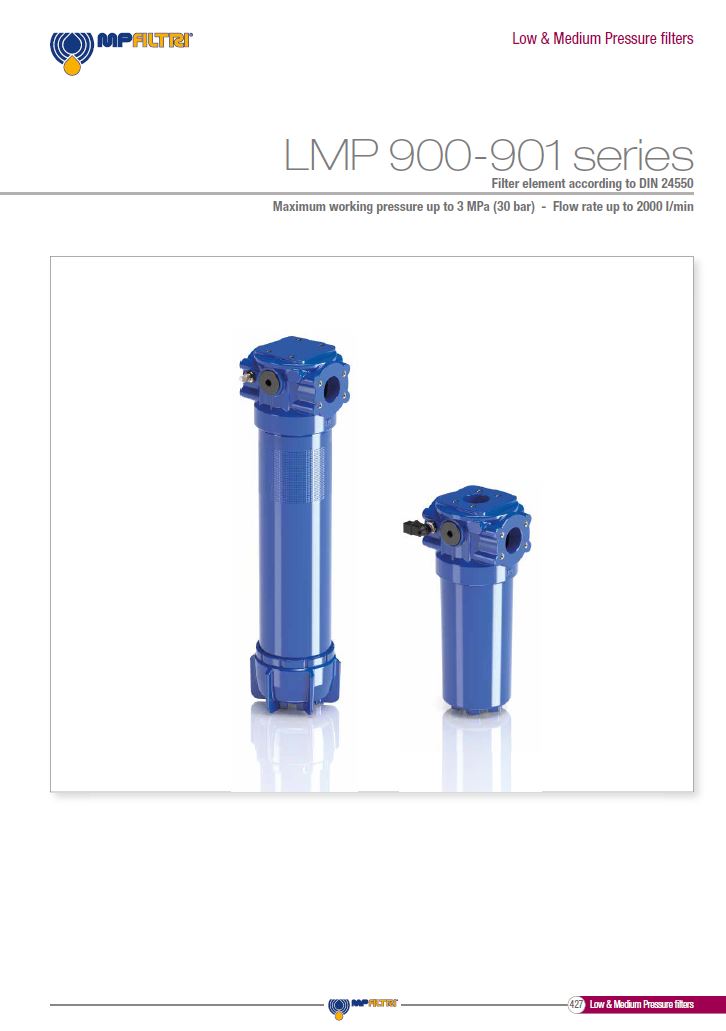

LMP 900 - 901 DIN 24550

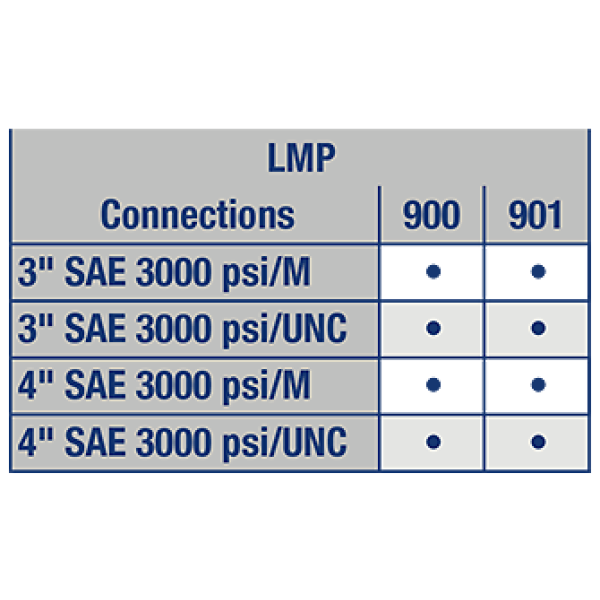

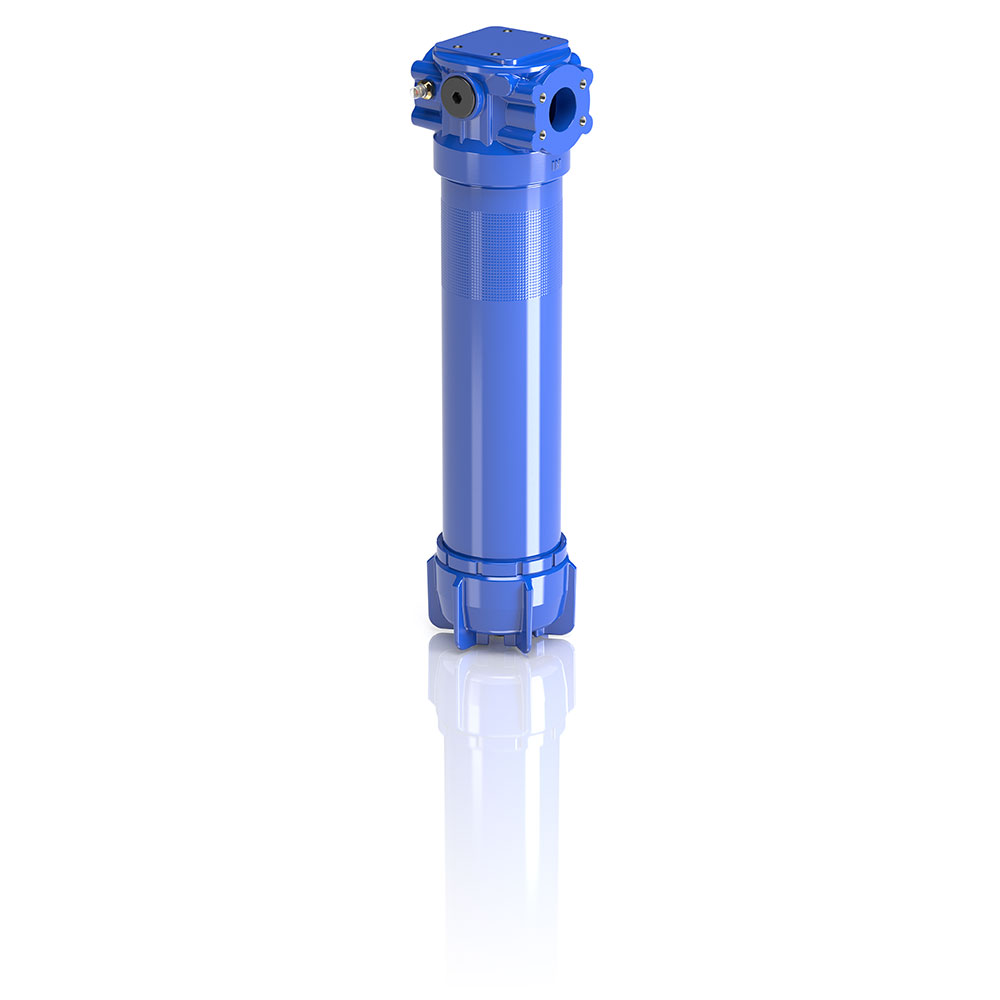

In-line filter, with filter elements to DIN 24550 specification. Working pressure up to 435 psi (30 bar), flow rates up to 528 gpm (2000 l/min), SAE code 61 flanged connections 3” and 4”.

In-line filters for high viscosity and high flow rate applications with a wide range of element media options, including water removal per DIN 24550 specification, particularly suited for off-line filtration circuits due to high dirt holding capacity. Bowl up design offers simple element change-out and minimal oil spillage.

See the relevant table for compatibility on fluids.
