High pressure manifold filters are designed to withstand the maximum pressure of the system and are sized according to the specific flow rate required. Featuring robust build quality, these fatigue rated filters are designed to thrive under high working pressures and offer exceptional protection to sensitive components downstream of the filters. A wide range of models are available to satisfy all needs, from low to high flow rates, with a wide choice of filter elements to ensure maximum circuit protection. Manifold connections allow for mounting onto circuit control blocks and manifolds.
CF20Last chance manifold cartridge
Pmax 414 bar, 6000 psi
Qmax 120 l/m, 32 gpm
High pressure manifold cartridge filters
FHMHigh pressure manifold mount filters
CETOP design
Pmax 4640 psi, 320 bar
Qmax 400 l/m, 106 gpm

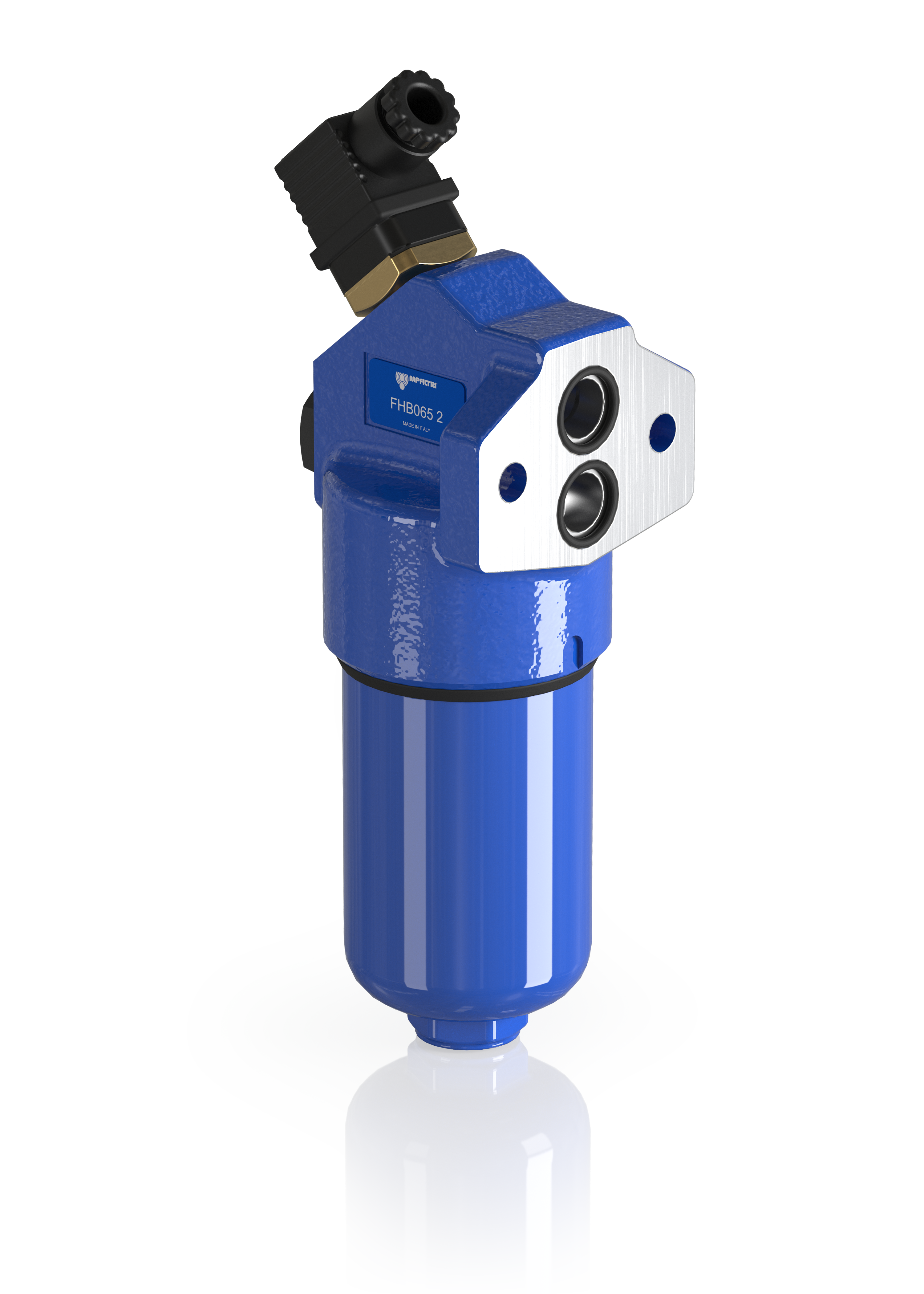

FHBHigh pressure filter
Side mount manifold filter
Pmax 4640 psi, 320 bar
Qmax 485 l/m, 128 gpm
FHF 325Inverted high pressure filter, SAE J2066 - HF4 design
HF4 automotive standard design
Pmax 5075 psi, 350 bar
Qmax 550 l/m, 145 gpm
HPBHigh Pressure Bowl Kit
Range to be integrated directly in the control block of the hydraulic systems.
Pmax 420 bar, 6092 psi
Qmax 300 l/m, 79 gpm
Ideal for protecting control blocks from contamination by reducing the size of hydraulic systems.
